G3

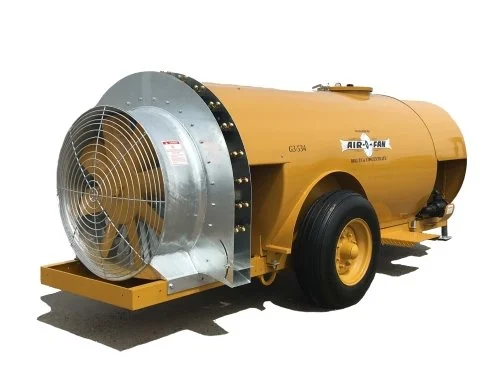

Air-O-Fan's commercial-grade, introductory-line PTO-driven sprayer is the G3-534/36, known for its big performance in a compact simple package. This model is the "3rd generation" to our retired G2-500 model line. The G3 has an added bonus for growers farming both orchard & vineyard crops, by removing a few simple bolts one is able to remove our vineyard attachments and go directly into an orchard application. Standard features include: a 304 stainless steel tank, adjustable spindles, heavy duty constant velocity PTO shaft, 1" stainless steel mechanical agitation, 34" & 36" diameter high performance axial flow steel fan, 2-row stainless steel short stack vineyard tower with up-spray volutes (or our single-row vineyard volute tower), and composite nylon adjustable air vanes with specialty valves. If you're in the market for a commercial-grade, base-line sprayer with powerful performance at an affordable price, the G3 series is the one to fit your needs!

Download the machine PDF HERE

• 500 gallon 304 stainless steel tank

• 36 GPM / 600 PSI Comet© diaphragm pump

• 34" diameter, 8-blade axial flow steel fan

• 2-speed gearbox with neutral

• Heavy duty PTO shaft

• Tank drive shaft with rundown clutch

• 1" 304 stainless steel mechanical agitation

• Cable type remote control

• 304 stainless steel strainers

• Teejet© ceramic nozzles

• Galvanized fan housing

• Composite nylon adjustable air vanes with specialty valves

• 13.5Lx16.1 ribbed implement tires

• Heavy duty hubs and spindles

• Either short stack tower with up-spray volutes OR Vineyard volute tower

• 600 gallon tank upgrade

• DK turning and 2-point turning hitches

• 100 GPM / 145 PSI Myers© 2-stage centrifugal pump

• 53 GPM / 600 PSI Comet© diaphragm pump (IDS 2200)

• Hydraulic and electric spray control valves

• 2" and 3" stainless steel fill connections

• Tank drain plumbed with valve

• Tree targeting, flow monitoring, and rate controlling systems

• Rear leaf guard

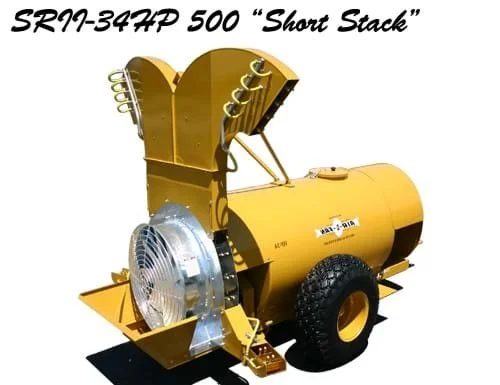

Specifications Short Stack

• Length 14' 3"

• Width 78"

• Height 62" to 68" (top of tank) / 109" (top of tower)

• Weight 2,625 pounds

• Air Velocity 130 mph (approximate)

PTO Horse Power Requirements:  75 – 95

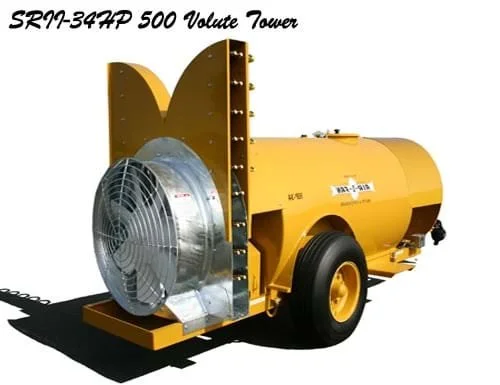

Specifications Volute

• Length 14' 3"

• Width 78"

• Height 62" to 68" (top of tank) / 109" (top of tower)

• Weight 2,425 pounds

• Air Velocity 130 mph (approximate)

PTO Horse Power Requirements:  75 – 95

Air-O-Fan has been building industry-leading air-blast sprayers for over 70 years. Gallard has proudly operated and imported Air-O-Fan equipment for more than 25 years and is the sole Australian agent and parts importer.

Our team knows these machines inside out because we’ve run them in our own orchards and supported the products across the country for decades.

We offer:

• Genuine Air-O-Fan parts supply

• Technical servicing and support

• In-house full and partial refurbishments

• Our expertise in horticulture ensures your sprayer is strategically matched to your orchard structure, crop type and long-term performance goals
